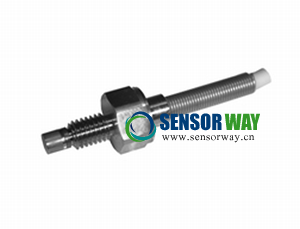

XPM4小型压力变送器中英文产品介绍
来源:赛斯维传感器网 发表于 2014/6/10



  Applications: Aerospace, Explosion test benches, Oven monitoring equipment, Robotics and effectors, Laboratory and research

  Description: The XPM4 is a miniature transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. The all-titanium construction and flush diaphragm protect the sensor against most corrosive environments. The XPM4 incorporates Measurement-Specialties’ cutting-edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. The XPM4’s sensing element is a fully temperature compensated Wheatstone bridge configuration made with high stability micro-machined silicon strain gauges which optimize performance, especially at low ranges and high frequencies. All models come with a cable output strengthened by a strain relief spring or with an electrical connector (optional). With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

  Features:

  Flush diaphragm, all-titanium construction
  Low installation torque sensitivity
  M4x1 thread
  Linearity up to ±0.35% F.S.
  For static and dynamic applications

  典型应用: 航空,爆炸测试,烘箱监测,机械人,实验室和研究

  产品描述: XPM4小型压力变送器用于多种工况下的动态和静态压力测量,全钛金属结构可以应用于大部分腐蚀性环境。XPM4结合了MEAS最新的SanShift技术,几乎可以消除由于安装扭矩带来的零点漂移。传感器的核心感应元件是一组金属应变片组成的惠斯通电桥,经过温度补偿,性能良好,尤其在小量程和低频率时。标准产品为电缆输出,电缆与传感器连接处有弹簧保护,可选连接头输出。作为拥有多年经验的传感器设计和制造商,MEAS常常与客户合作,按要求定制适合特殊用途和测试环境的传感器。同时,我们也根据客户需要提供成套系统。配套元件(传感器,电源,放大器和数显系统)配置统一,经过校正,可供客户立即使用。

  特点:

  齐平膜,全钛结构
  低安装扭矩灵敏度
  M4×1螺纹
  线性:±0.35% F.S.
  静态和动态测量

  XPM4小型压力变送器传感器更多技术参数及规格书下载请浏览:http://www.sensorway.cn/sensors/570.html

  北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
